Description

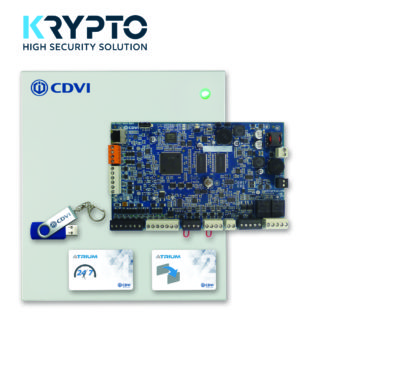

The A22K is ATRIUM’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road! ATRIUM’s unique and effortless card enrollment mode minimizes system start up and simplifies your life.
Technical Specifications:
- Controls 2 doors and 4 readers (Entry/Exit per reader port)
- Pre-assembled universal plug-in power supply (120V/240V) included
- Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
- On-board Ethernet Port with AES 256-bit encryption
- On-board RS485 communication bus, 1220 m (4000 feet)
- Embedded secure HTTPS web server
- Auto-detect hardware modules
- Quick and easy card enrollment procedure
- Lock outputs: 2 (750 mA @ 12 VDC/each)
- Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC
- 6 multi-purpose inputs (12 using zone doubling)
- IPV6 ready
- Entirely fuseless system
- Up to 10,000 users
- Up to 10,000 cards
- Up to 25,000 Event Buffer
- Ultra fast firmware updating
- FREE Atrium Software
- Maintenance-friendly snap on terminal connectors
- Comprehensive LED status indicators
