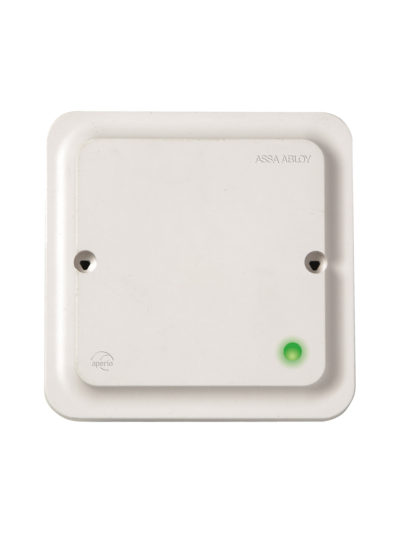

AH30 – Aperio Hub

Aperio Online is a technology that enables mechanical locks to be connected wirelessly to an existing access control system in a convenient and cost effective manner. The main feature is the use of a wireless short distance communication protocol for communication with locks and a wired connection to an online access control system. Aperio is easy to integrate with most devices and systems, regardless of manufacturer, as it has a large integrated base. Different mechanical standards and RFID technologies are supported to provide a solution for most markets.

• Manages up to 8 APERIO™ wireless door handles
• The AH30 connects via RS485 bus of the ATRIUM controller
• Each APERIO™ wireless device pairing with the AH30 hub,
  will be added as a door in the ATRIUM system
• Power Supply : 8-24 VDC
• Current : 80 mA at 12 VDC, 250 mA at 24 VDC
• Wireless Range: Indoors 50 ft to 82 ft (15 to 25 meters)
  depending upon installed environment
• Dimensions : 3.25″ (H) x 3.25″ (W) x 1.46″ (T) (82 mm x 82 mm x 37 mm)
• Operating Temp. : 41°F to 95°F (5°C to 35°C)
• IP Classification : IP20
